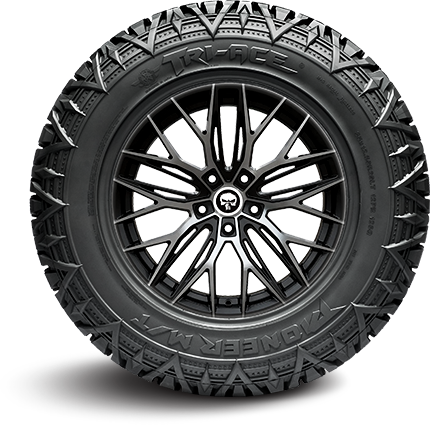

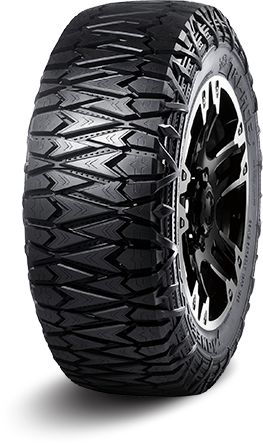

PIONEER
M/T

Strong traction; Excellent grip, mud discharge and drainage performance.

ADVANTAGES

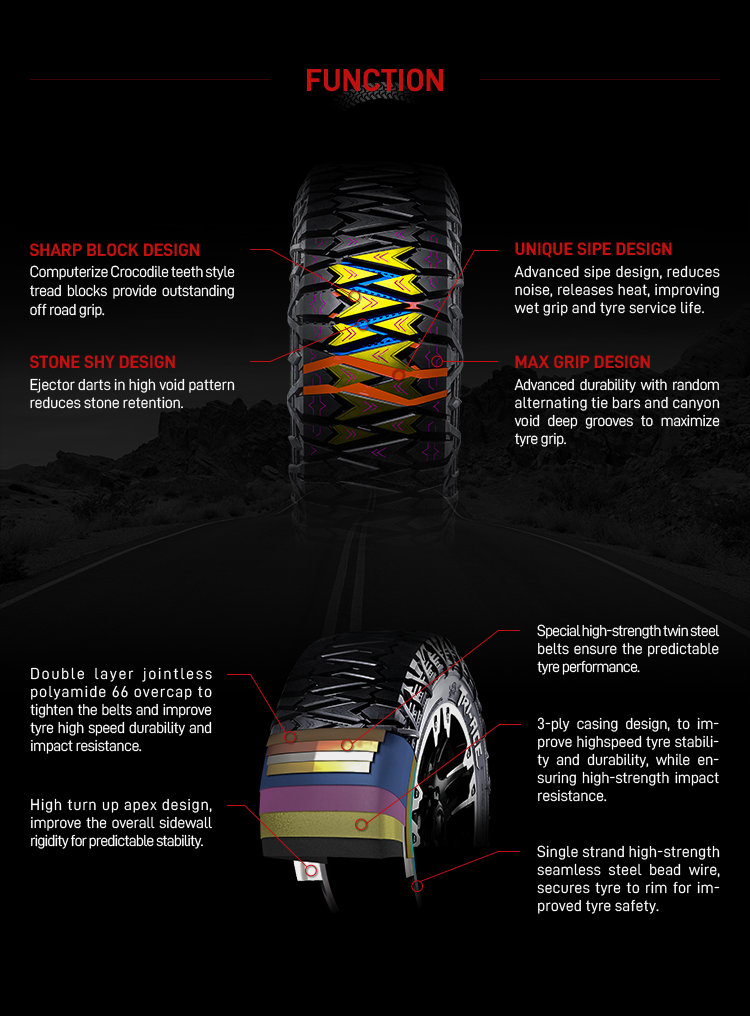

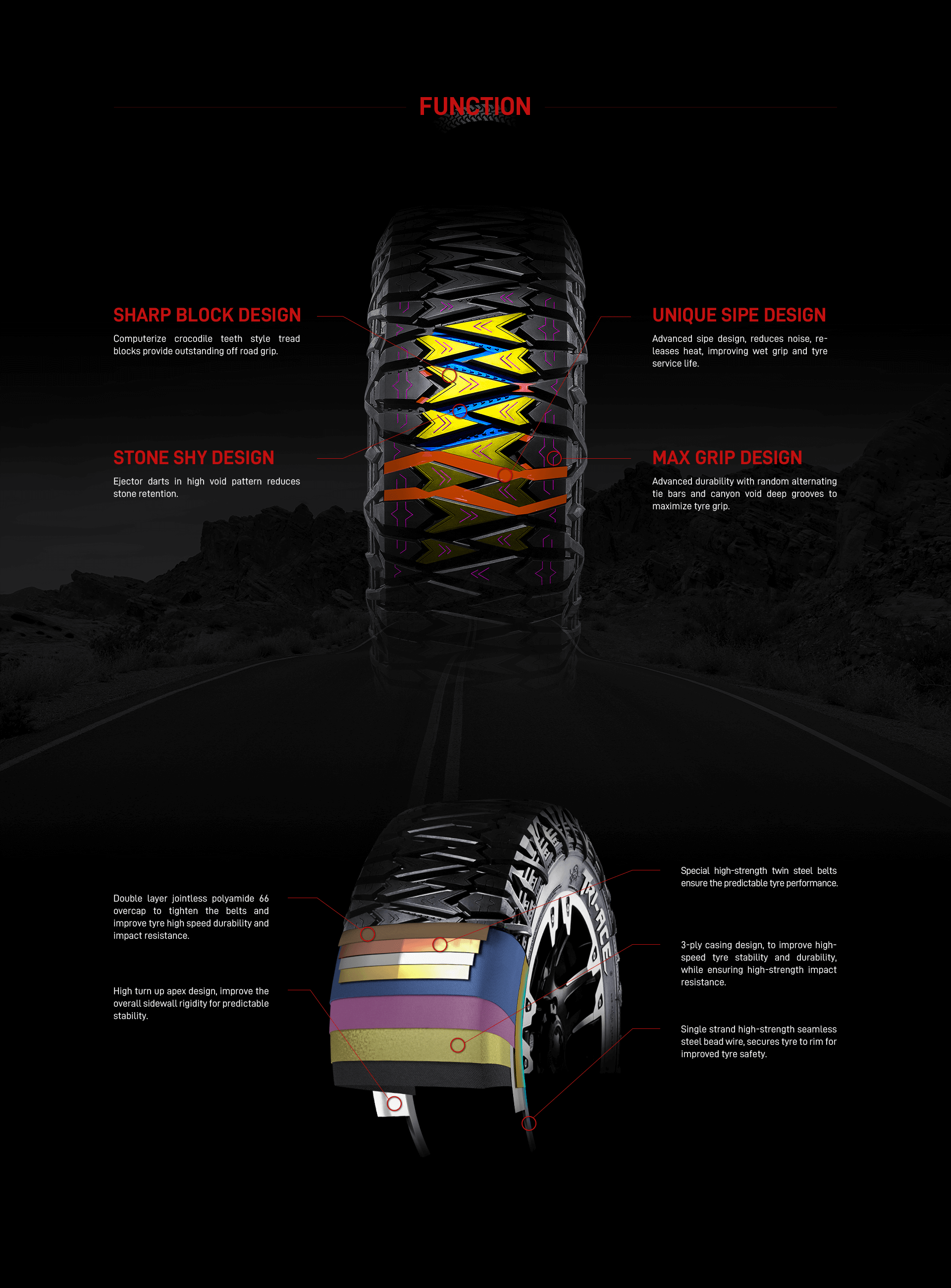

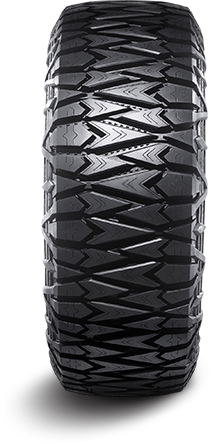

PERFORMANCE SUPERIORITY PATTERN FEATURES

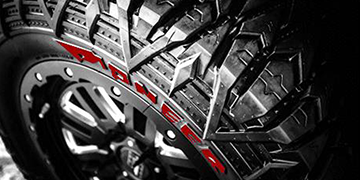

V-SHOULDER DESIGN

Rim protector enhanced sidewall protects the rim from shock damage.

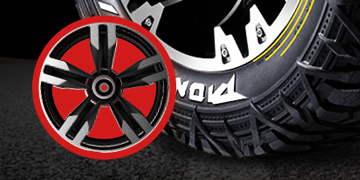

RIM PROTECTOR

Protruding V-shoulder block pattern design, greatly improves deflection while improving off road bite.
RHOMB BLOCK DESIGN

Sidewall protrusion bars further improve the sidewall impact resistance

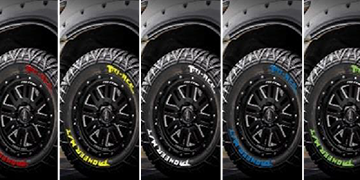

CUSTOM COLOR

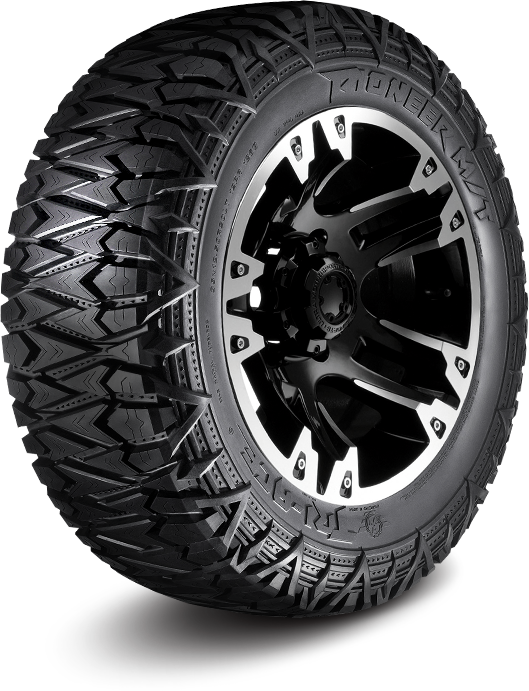

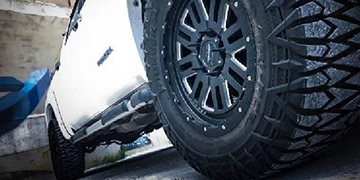

PRODUCT DISPLAY

PRODUCT LIST

Inch Product Code Size Ply Load
index 		Speed Pattern Tread
Depth (32nd) 		Overall
Diameter (inch) 		Overall Width (inch) Approved Rim Width Range (inch) Max Load (lbs)  Max Pressure(PSI) Weight（Kgs）
16 1100047024 LT185/85R16 6PR 100/97 N PIONEER MT  19 28.9 8 5-5.5-6 1765/1610 50
1100047036 LT205/80R16 6PR 100/97 N PIONEER MT  19 28.9 8 5-5.5-7 1765/1610 50
17 1100047028 LT205/75R17 10PR 111/108 N PIONEER MT  19 28.9 8 5-5.5-7 2403/2205 80
1100047005 LT285/70R17 10PR 121/118 Q PIONEER MT  19 32.8 11.5 7.5-8.5-9 3195/2910 80
1100047003 LT315/70R17 10PR 125 Q PIONEER MT  21 34.76 12.72 8.5-10-11 3640 80
1100047037 37X12.50R17LT 12PR 131 P PIONEER MT  21 36.76 36.76 8.5-11 4300 80
1100047055 37X13.50R17LT 12PR 131 P PIONEER MT  21 36.76 13.6 9.5-12 4300 80
1100047009 33X12.50R17LT 10PR 120 Q PIONEER MT  21 32.76 12.5 8.5-10-11 3085 65
18 1100047006 LT285/65R18 10PR 125/122 Q PIONEER MT  19 32.56 11.5 8-8.5-10 3640/3305 80
1100047010 33X12.50R18LT 10PR 118 Q PIONEER MT  21 32.76 12.5 8.5-10-11 2910 65
20 1100047007 LT275/55R20 10PR 120/117 Q PIONEER MT  19 31.89 11.2 7.5-8.5-9.5 3085/2835 80
1100047008 LT285/55R20 10PR 122/119 Q PIONEER MT  19 32.6 11.7 8-9-10 3305/3000 80
1100047011 33X12.50R20LT 10PR 114 Q PIONEER MT  21 32.76 12.5 8.5-10-11 2600 65
1100047001 35X12.50R20LT 12PR 126 Q PIONEER MT  21 34.76 12.5 8.5-10-11 3750 80
1100047045 LT345/60R20 12PR 128 Q PIONEER MT  21 36.76 13.6 10-12 3970 80
22 1100047002 35X12.50R22LT 10PR 117 Q PIONEER MT  21 34.76 12.5 8.5-10-11 2833 65
1100047048 LT345/55R22 12PR 128 Q PIONEER MT  21 36.76 13.6 11-12 3970 80
24 1100047021 35X13.50R24LT 10PR 118 Q PIONEER MT  21 34.76 13.6 9.5-11-12 2910 65
1100047051 LT345/45R24 12PR 124 Q PIONEER MT  21 36.76 13.6 11-12 3525 80
26 1100047022 35X13.50R26LT 10PR 118 Q PIONEER MT  21 34.76 13.6 9.5-11-12 2910 65
1100047054 LT345/40R26 12PR 125 P PIONEER MT  21 36.76 13.6 12-13 3640 80
