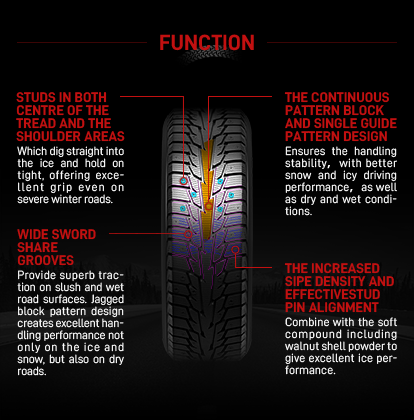

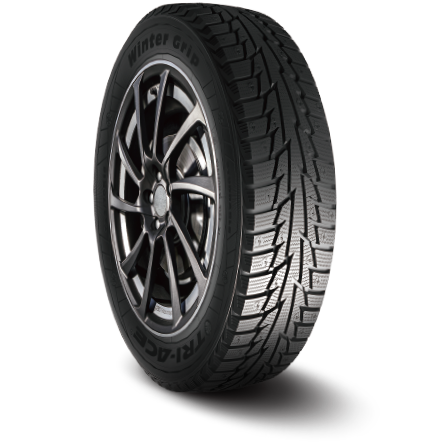

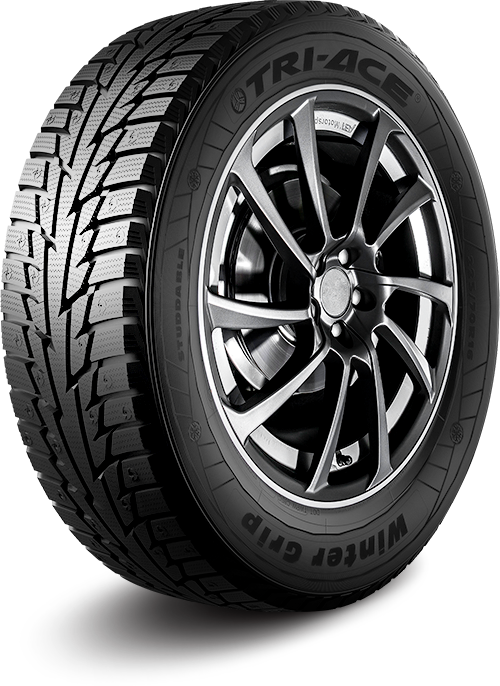

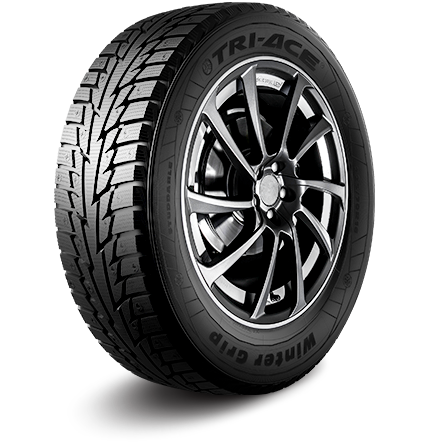

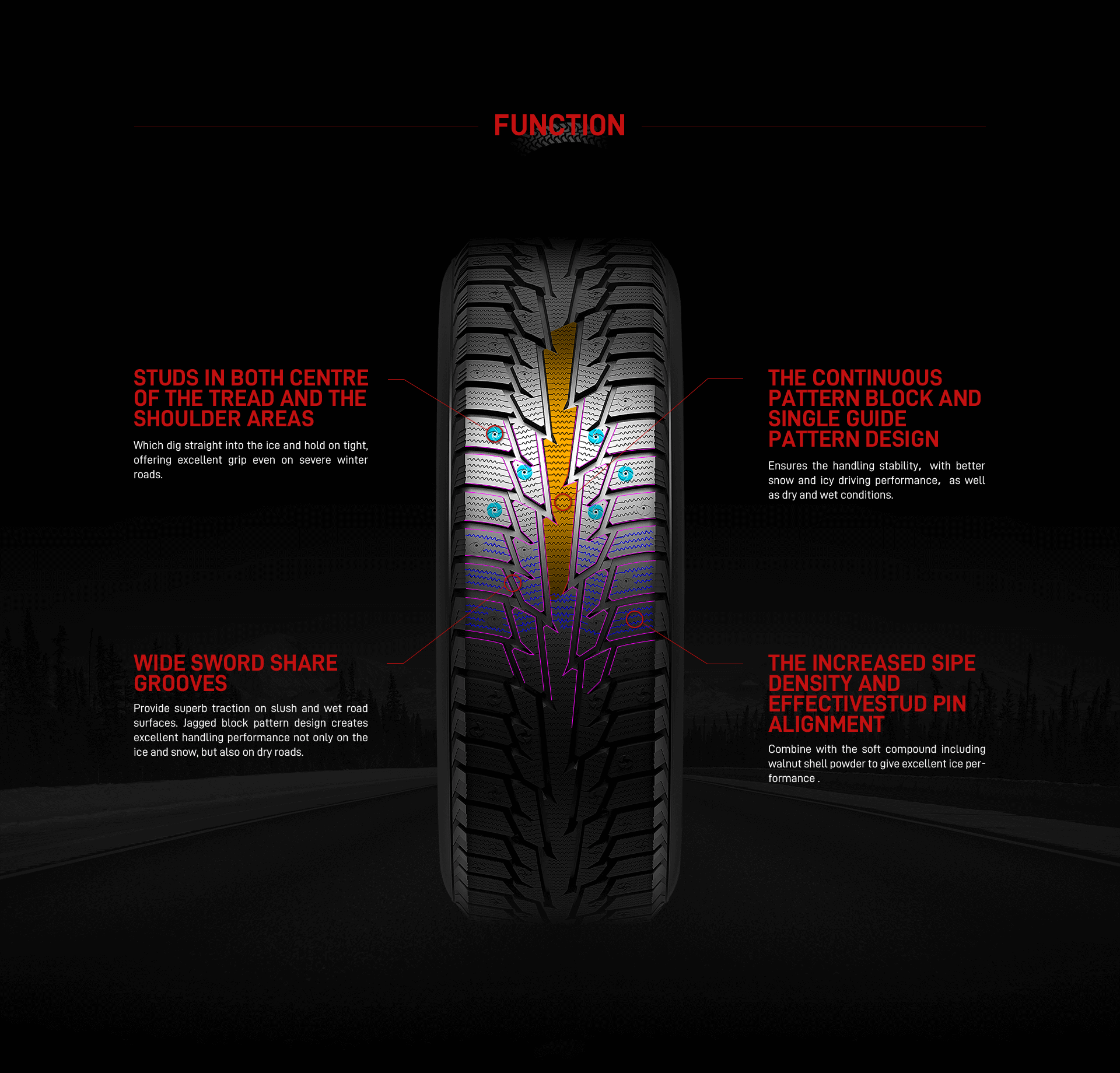

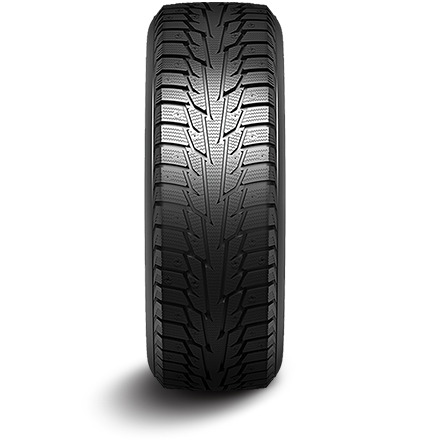

Tri-Ace brand WINTER GRIP pattern is designed for SUV/CUV/pickup truck etc. Directional tread pattern design enhances water-draining ability and increases traction power, reduces the vehicle's braking distance and maximizes driver's safety on slippery road conditions.
| PERFORMANCE SUPERIORITY | PATTERN FEATURES |
|---|---|
| Strong traction on ice and snow-covered roads |
New silica enriched compound |
| Engineered for SUVs CUVs and light trucks |
Using high modulus, high strength, low shrinkage |
| Deeper 3D sipes are dense used on tread blocks |
Helps a lot for block rigidity and creating more |
| Inch | Product Code | Size |
Load index |
Speed | 加强 | Pattern |
Tread Depth (32nd) |
Overall Diameter (inch) |
Section Width (inch) |
Approved Rim Width Range (inch) | Max Load (lbs) | Max Pressure(PSI) | Weight（Kgs） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 1100018046 | 235/75R15 | 109 | T | XL | Winter Grip | 14 | 28.9 | 9.3 | 6 1/2J | 2270 | 50 | |
| 16 | 1100018002 | 225/70R16 | 107 | T | XL | Winter Grip | 14 | 28.4 | 9.0 | 6 1/2J | 2145 | 50 | |
| 1100018003 | 235/70R16 | 109 | T | XL | Winter Grip | 14 | 29.0 | 9.4 | 7J | 2271 | 50 | ||
| 17 | 1100018047 | 225/65R17 | 106 | T | XL | Winter Grip | 14 | 28.5 | 9.0 | 6 1/2J | 2094 | 50 | |
| 1100018048 | 235/65R17 | 108 | T | XL | Winter Grip | 14 | 29.1 | 9.4 | 7J | 2205 | 50 | ||
| 18 | 1100018013 | 225/60R18 | 104 | H | XL | Winter Grip | 14 | 28.6 | 9.0 | 6 1/2J | 1984 | 50 | |
| 1100018017 | 235/60R18 | 107 | T | XL | Winter Grip | 14 | 29.1 | 9.4 | 7J | 2105 | 50 |
