PIONEER
ATX

Dual sidewall design All-Terrain tyres.

ADVANTAGES

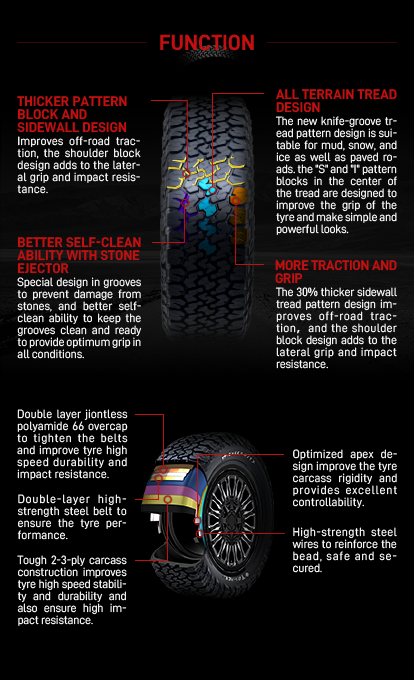

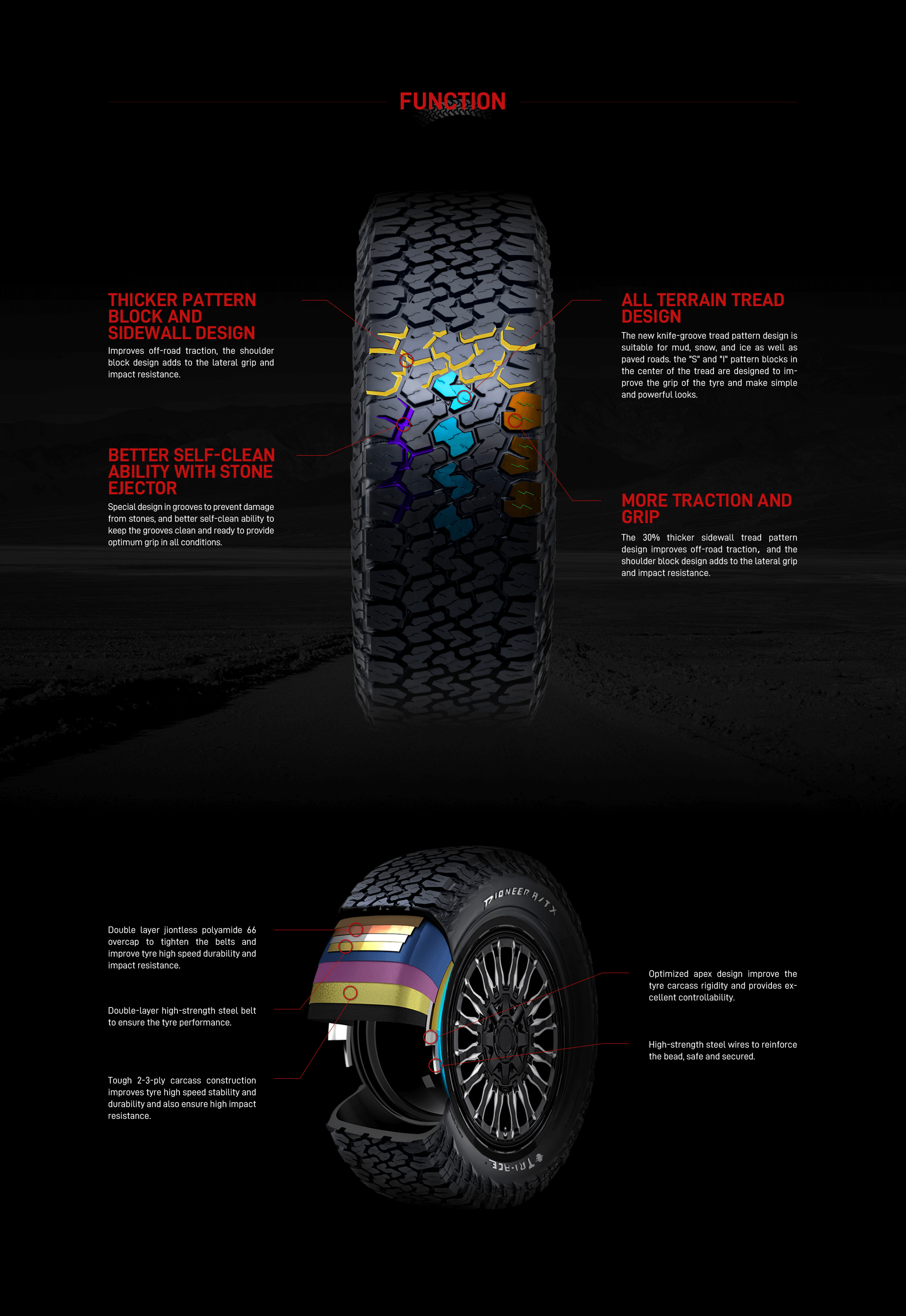

PERFORMANCE SUPERIORITY PATTERN FEATURES

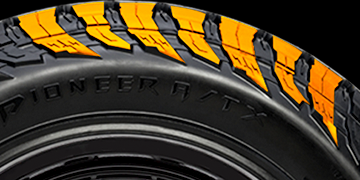

DURAL SIDWALL DESIGN

Enables enthusiast to customize the look of their vehicles.

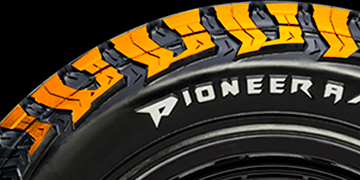

RIM PROTECTOR

Thick base rubber protects the tyre and rim protector design safeguards wheels from damage in rough going.

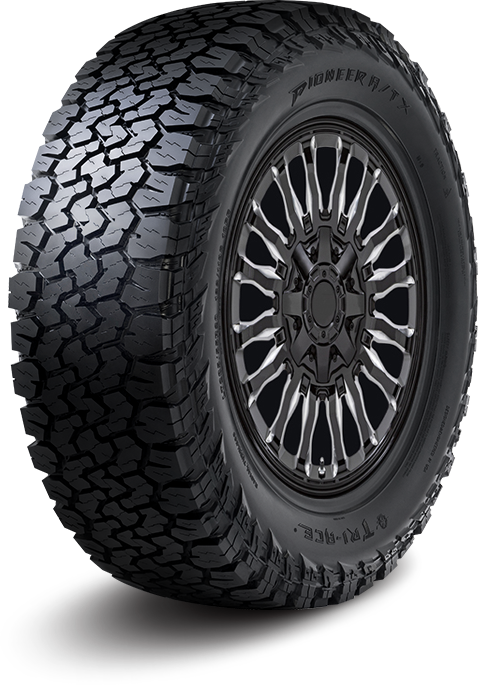

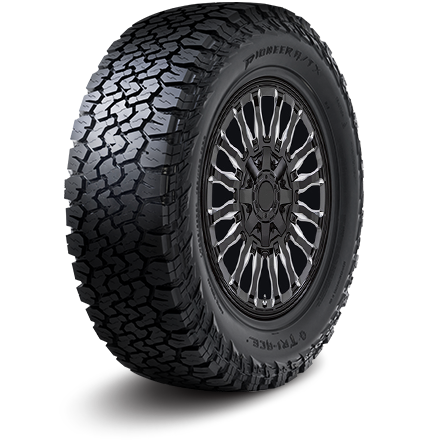

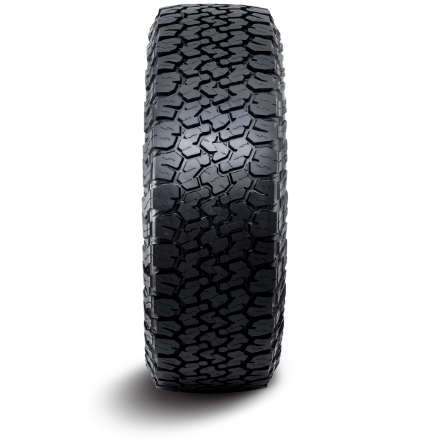

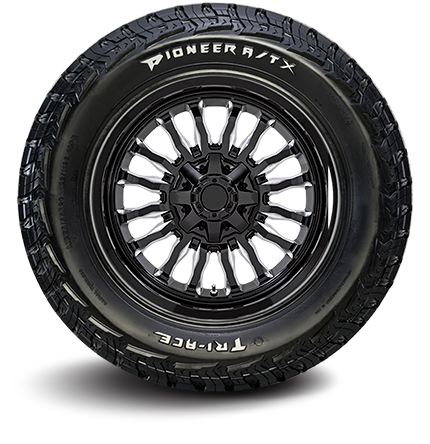

PRODUCT DISPLAY

PRODUCT LIST

Rim Diameter Size Product Code Ply Load
index 		Speed Pattern Tread
Depth (32nd) 		Overall
Diameter (inch) 		Section
Width (inch) 		Approved Rim Width Range (inch) Max Load (lbs)  Max Pressure(PSI) Weight（Kgs）
Single Dual
15 LT235/75R15 1100092001 10 116/113 S Pioneer ATX 16 29.1 9.3 6-6.5-8 2755 2535 80
16 LT235/70R16 1100092002 8 110/107 S Pioneer ATX 16 29 9.4 6-7-8 2335 2150 65
LT265/70R16 1100092003 10 121/118 S Pioneer ATX 13 30.6 10.7 7-8-9 3195 2910 80
17 LT235/65R17 1100092015 8 109/105 R Pioneer ATX 16 29.1 9.4 6.5-7-8.5 2270 2040 65
LT265/65R17 1100092004 10 120/117 S Pioneer ATX 13 30.6 10.7 7.5-8-9.5 3085 2835 80
LT265/70R17 1100092005 10 121/118 S Pioneer ATX 16 31.7 10.7 7-8-8.5 3195 2910 80
LT275/65R17 1100092016 10 121/118 S Pioneer ATX 14 31.3 11 7.5-8-9.5 3195 2910 80
LT275/70R17 1100092006 10 121/118 S Pioneer ATX 16 32.2 11 7-8-8.5 3195 2910 80
LT285/70R17 1100092007 10 121/118 S Pioneer ATX 16 32.8 11.5 7.5-8.5-9 3195 2910 80
18 LT265/60R18 1100092008 10 119/116 S Pioneer ATX 13 30.5 10.7 7.5-8-9.5 3000 2755 80
LT265/65R18 1100092009 10 122/119 S Pioneer ATX 16 31.8 10.7 7.5-8-9.5 3305 3000 80
LT275/65R18 1100092010 10 123/120 S Pioneer ATX 16 32.1 11 7.5-8-9 3415 3085 80
LT285/60R18 1100092017 10 122/119 S Pioneer ATX 16 31.7 11.5 8-8.5-10 3305 3000 80
LT285/65R18 1100092011 10 125/122 S Pioneer ATX 16 32.8 11.5 8-10 3640 3305 80
20 LT265/50R20 1100092012 10 116/112 S Pioneer ATX 13 30.5 10.9 7.5-8.5-9.5 2680 2469 80
LT275/55R20 1100092013 10 120/117 S Pioneer ATX 14 32.1 11.2 7.5-8.5-9.5 3085 2835 80
LT285/55R20 1100092014 10 122/119 S Pioneer ATX 16 32.6 11.7 8-9-10 3305 3000 80
