PIONEER
AT3

Pioneer AT3 is our best choice for light trucks, SUVs, and CUVs with excellent on and off road abilities: great traction, comfortable ride, good noise control, stable handling and long mileage.

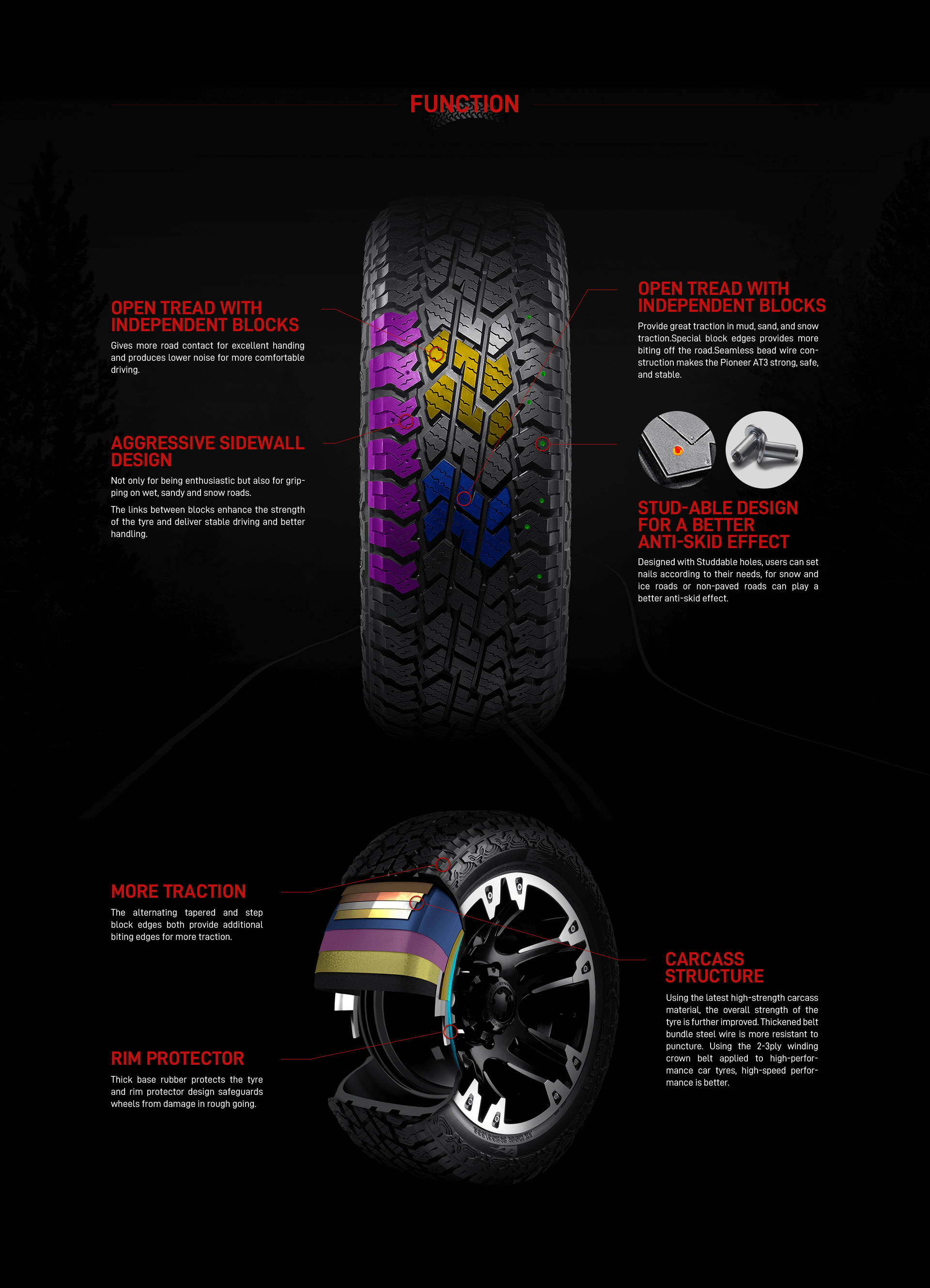

ADVANTAGES

PERFORMANCE SUPERIORITY PATTERN FEATURES

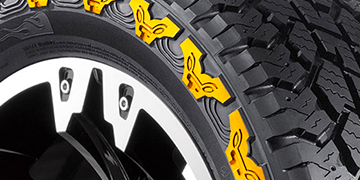

AGGRESSIVE SIDEWALL DESIGN

Bionic lifelike tiger sidewall and open tread design: make the tyre looks overbearing，unique and individual. At the same time, it provides strong traction to keep the tyre stable in mud, snow and paved roads.

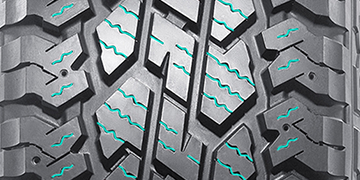

SIMPLE AND NEAT SERRATED KNIFE GROOVE DESIG

While on snowy and icy roads, snow and ice act like a knife rupture ease, to form an effective grip.

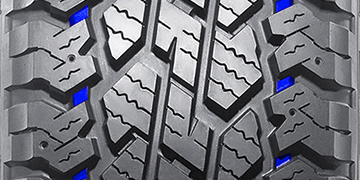

TYRE SHOULDER GROOVE SMALL LINKS

Greatly enhance the strength of the shoulder, also strengthening the tyre sidewall stiffness.

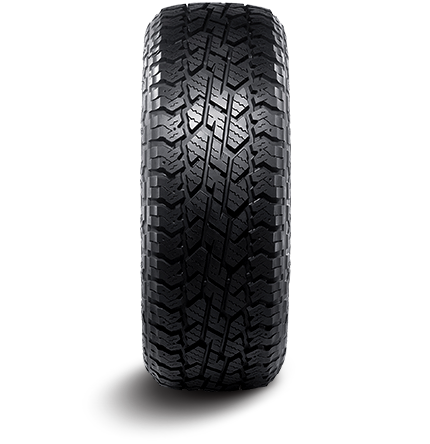

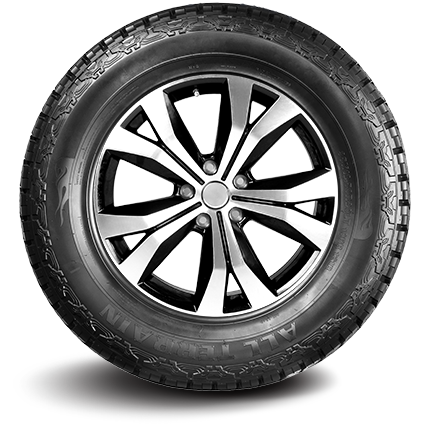

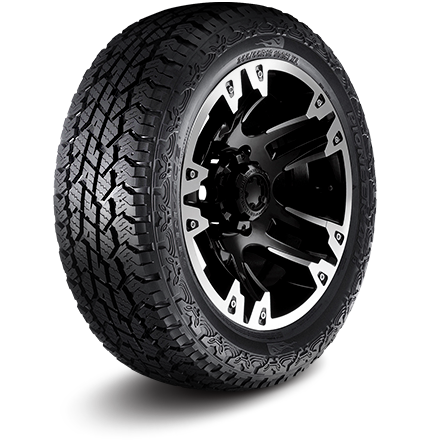

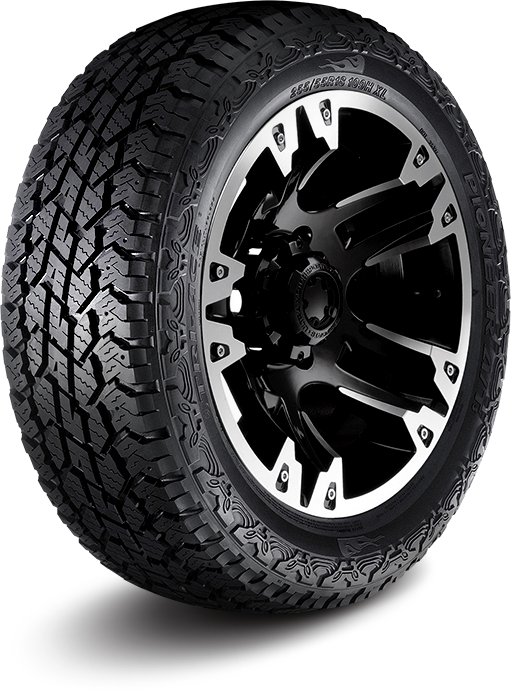

PRODUCT DISPLAY

PRODUCT LIST

Rim Diameter Size Product Code Ply Load
index 		Speed Pattern Tread
Depth (32nd) 		Overall
Diameter (inch) 		Section
Width (inch) 		Approved Rim Width Range (inch) Max Load (lbs)  Max Pressure(PSI) Weight（Kgs）
16 LT235/85R16 1100026022 10 120/116 R Pioneer AT3 16 31.7 9.3 6-6.5-7 3042/2778 80
LT245/75R16 1100026023 6 108/104 S Pioneer AT3 16 30.5 9.8 6.5-7-8 2205/2006 50
LT245/75R16 1100026024 10 120/116 S Pioneer AT3 16 30.5 9.8 6.5-7-8 3042/2778 80
LT265/75R16 1100026025 10 123/120 R Pioneer AT3 16 31.7 10.5 7-7.5-8 3415/3085 80
LT265/75R16 1100026026 6 112/109 T Pioneer AT3 16 31.7 10.5 7-7.5-8 2470/2270 50
17 LT235/80R17 1100026029 10 120/117 R Pioneer AT3 16 31.8 9.3 6-6.5-7.5 3085/2835 80
LT245/70R17 1100026030 10 119/116 R Pioneer AT3 16 30.6 9.8 6.5-7-8 3000/2755 80
265/65R17 1100026060 116 H XL Pioneer AT3 13 30.5 10.8 7.5-8-9.5 2756 50
LT265/70R17 1100026059 10 121/118 R Pioneer AT3 16 31.7 10.3 7-8-8.5 3195/2910 80
35X12.50R17LT  1100026041 10 121 R Pioneer AT3 17 34.5 12.5 8.5-10-11 3195 65
18 255/55R18 1100026010 109 H XL Pioneer AT3 13 29 10.4 7-8-9 2271 50
265/60R18 1100026061 116 H XL Pioneer AT3 13 30.5 10.7 7.5-8-9.5 2756 50
P275/65R18 1100026062 114 H Pioneer AT3 13 32.1 11 7.5-8-9.5 2601 44
LT275/65R18 1100026034 10 126/123 S Pioneer AT3 16 32.1 11 7.5-8-9 3750/3415 80
LT285/65R18 1100026035 10 125/122 S Pioneer AT3 17 32.6 11.5 8-8.5-10 3640/3305 80
35X12.50R18LT 1100026042 10 123 R Pioneer AT3 17 34.5 12.5 8.5-10-11 3415 65
19 255/50R19 1100026014 107 H XL Pioneer AT3 13 29.1 10.4 7-8-9 2149 50
20 265/50R20 1100026064 112 H XL Pioneer AT3 13 30.5 10.9 7.5-8.5-9.5 2469 50
P275/60R20 1100026063 114 H Pioneer AT3 13 33 10.9 7.5-8-9.5 2601 44
LT275/65R20 1100026036 10 126/123 S Pioneer AT3 16 34.1 11 7.5-8-9.5 3750/3415 80
LT285/55R20 1100026037 10 122/119 S Pioneer AT3 16 32.4 11.7 8-9-10 3305/3000 80
LT305/55R20 1100026038 10 121/118 S Pioneer AT3 16 33.2 12.4 8.5-9.5-11 3195/2910 65
LT305/60R20 1100026047 10 123/120 R Pioneer AT3 17 34.4 12.2 8.5-9-11 3415/3085 65
33X12.50R20LT 1100026065 10 114 R Pioneer AT3 17 32.76 12.5 8.5-10-11 2600 65
35X12.50R20LT 1100026043 10 121 R Pioneer AT3 17 34.5 12.5 8.5-10-11 3195 80
22 LT305/50R22 1100026048 10 119/116 R Pioneer AT3 17 34.1 12.4 8.5-9.5-11 3000/2755 65
LT325/50R22 1100026039 10 122 R Pioneer AT3 17 34.8 13.2 9-10-12 3305 65
23 LT375/25R23 1100026069 10 118 H Pioneer AT3 15.7 30.48 15.2 13-13.5-14 2910 65
24 33X12.50R24LT 1100026066 10 118 R Pioneer AT3 17 32.76 12.4 8.5-10-11 2910 65
